Product Name |

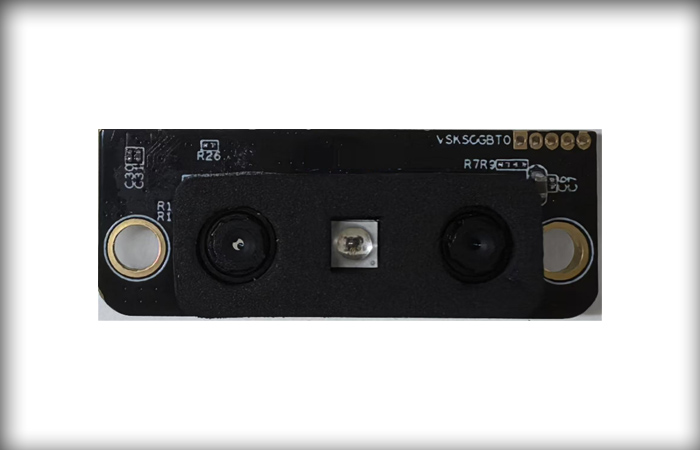

CAMA-FCM02M Face Recognition OEM Module |
| IR+RGB Camera | Resolution: 1/6.5",648H x 488V FoV:H 75.4°,V 60°,D89° |
| Face Module Size | 40mm x15mm |
| Face Capacity | 1,000 Users |
| Live Face Detection | Supported |
| Support Interface | UART and USB |
|
Verification Method |
1：1 and 1:N |
|
Items |
Descriptions |
|
Face Capacity |
1,000 face users can be stored |
|
RGB Camera |
Resolution: 1/6.5",648H x 488V FoV:H 75.4°,V 60°,D89° |
|
IR Camera |
Resolution: 1/6.5",648H x 488V FoV:H 75.4°,V 60°,D89° |
|
FRR |
<0.1% |
|
FAR |
<0.001% |
|
Identification Speed |
1:1<0.5s 1:N <1s |
|
Identification Distance |
35cm to 100cm |
|
Interface |

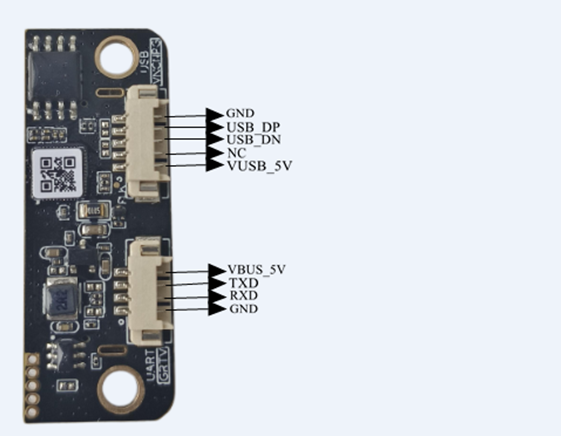

USB 2.0 interface(5pin) and UART Interface(4pin) |
|
Working Voltage |
UART:3.3V USB: 5V-9V |
|
Working Current |
374mA |
|
Power-on Time |
0.27s |
|

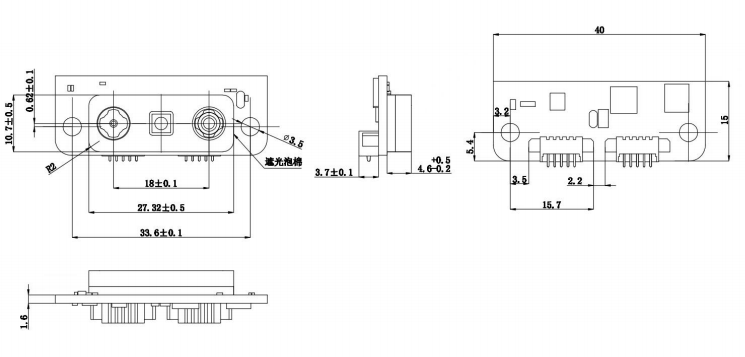

Module Size |
40*15mm |
|
Storage Temperature |
-40℃ ~ 85℃ |
|
Working Temperature |
-30℃- 70℃ |
|
Working Humidty |
< 93% RH,Non-condensing |
|
ESD Parameters |
±2000 V |
|
Communication Parameters |
Parity = NONE， One Stop Bit = 1 Flow Control = NONE BaudRate:9600, 19200, 38400, 57600, 115200（bps） Default：115200bps |
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. User Manual of CAMA-FCM02 ( Command Protocols Included)
2. DEMO Software For Testing Purpose
3. SDK for Secondary Development
If you have any technical questions before you buy CAMA-FCM02M face recognition OEM module, you can contact cama@szcama.com for support.
Applications of CAMA-FCM02M face recognition OEM module
CAMA-FCM02M face recognition OEM module can be widely used for following products
1. Face Recognition door lock system
2. Biometric access control system
3. Biometric time attendance system
4. Biometric car starter
5. Biometric safe box lock
Keywords: Face recognition module, Face recognition oem module,facial recognition module,facial recognition oem module,facial recognition module for time attendance device,facial recognition module for access control
