Product Name |
CAMA-M442 Multi Finger and Pamprint Scanner |
|
Fingerprint Image |
500 DPI |
| Fingerprint Capture Area | 84.68mm*79.6mm |
| Effective Capture Area | 76.2mm*81.3mm |
| Pixel Array | 1500 Pixel x 1600 Pixel |
| Support Interface | USB 2.0 |
| Support O/S | Support Windows,Android,Linux |

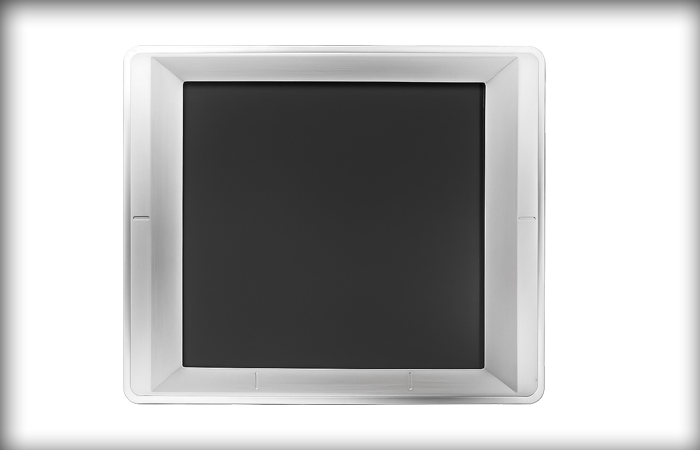

The CAMA-M442 is an ultra-thin, high-quality capacitive 4 4 2 fingerprint scanner and palm print scanner. It operates via a USB 2.0 connection and
has a compact design, making it easy to integrate into various devices. With CAMABIO user-friendly image capture software, it can acquire high-quality
images efficiently.
The CAMA-M442’s advanced image quality detection technology ensures that the captured fingerprint images meet the FBI’s Automatic Fingerprint
Identification System (AFIS) quality certification requirements, as well as the Chinese Ministry of Public Security GA standards for live fingerprint capturing
It is suitable for use in customs, airports, immigration checkpoints, as well as in law enforcement, finance, education, and data collection applications.
Product Features
# Ultra Slim Capacitive Fingerprint Sensor
# Support 4 4 2 Fingerprint Scan
# Support Palmprint Scan
# Support Live Finger and Palm Scan
# FBI Appendix F and FAP60 certificate
# USB 2.0 Interface
# Support Windows,Android,Linux SDK
Product Specifications
|
Item |
Specification |
|
Resolutions |
500 DPI |
|
Effective Image Size |
76.2mm*81.3mm |
|
Capture Window Size |
84.68mm*79.6mm |
|
Product Dimensions |
122mm*102mm*15.3mm ±0.3 |
|
Image Size |
1600 * 1500 Pixels |
|
Image Distortions |
None |
|
Image Dynamic Range |
≥200 Levels |
|
Gray Scale Levels |
8 bit,256 Level |
|
Capture Rate |
Four-finger normal capture: 4 fps; Single-finger rolling capture: 8 fps |
|
Operating Temperature |
-10℃～50℃ |
|
Storage Temperature |
－40℃～85℃ |
|
Working Humidity |
10～90% |
|
Interface |
USB 2.0 |
|
Sensor Type |
SBFS |
|
Supported Operating System |
Windows 7 or later (32/64 bit) |
|
Android 6.0 or later (32-bit, 64-bit, ARMV7-A,and ARMv8-A) |
|
|
Linux Kernel3.0 or later (32-bit, 64-bit,ARMv7-A, and ARMv8-A) |
|
|
CPU |
x86 and x64|2.0GHz or higher |
|
ARM|1.0 GHz or higher |
|
|
Memory |
4GB or higher |
|
Output format |
BMP |

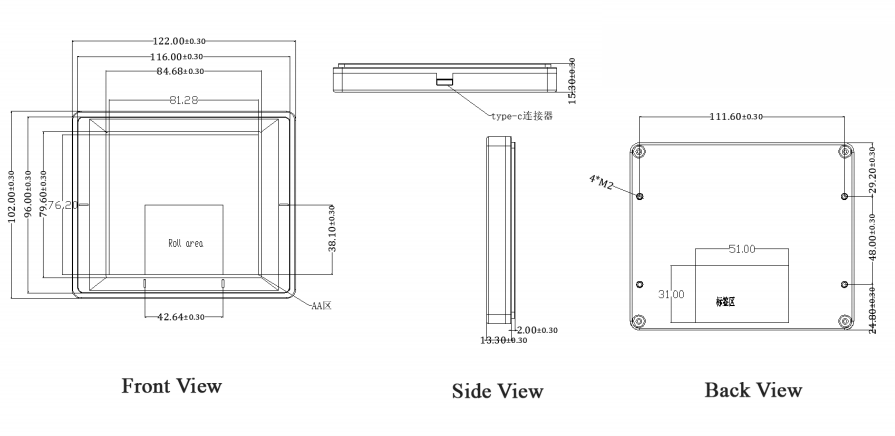

Product Size
Technical Support
To support your electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product
1. User Manual of CAMA-M442
2. DEMO Software For Testing Purpose
3. Windows/Android/Linux SDK For Secondary Development
If you have any technical questions before you buy CAMA-M442 fingerprint Scanner, you can contact cama@szcama.com for support.
Applications of CAMA-M442 Fingerprint & Palmprint Scanner
CAMA-M442 4-4-2 fingerprint & palmprint scanner can be widely used for following applications
1. Custom Identity Checking
2. Airport Identity Checking
3. Immigration Checkpoints
4. Law Enforcement
5. Bank Finance
6. Election Voter Identity Checking
Keywords: 442 fingerprint scanner,livescan fingerprint scanner,palmprint scanner,multi fingerprint scanner,FBI certified fingerprint scanner,FBI Appendix F fingerprint scanner,FAP60 fingerprint scanner,
palm print scanner,4-4-2 finger print scanner,442 fingerprint scanner manufacturer,palmprint scanner manufacturer
